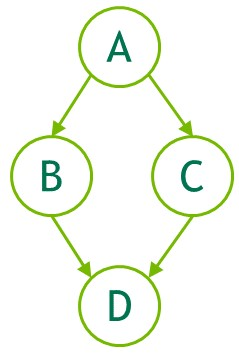

// 创建图 - 初始为空
cudaGraphCreate(&graph, 0);

// 创建节点及其依赖关系
cudaGraphNode_t nodes[4];
cudaGraphNodeParams kParams = { cudaGraphNodeTypeKernel };
kParams.kernel.func         = (void *)kernelName;
kParams.kernel.gridDim.x    = kParams.kernel.gridDim.y  = kParams.kernel.gridDim.z  = 1;
kParams.kernel.blockDim.x   = kParams.kernel.blockDim.y = kParams.kernel.blockDim.z = 1;

cudaGraphAddNode(&nodes[0], graph, NULL, NULL, 0, &kParams);
cudaGraphAddNode(&nodes[1], graph, &nodes[0], NULL, 1, &kParams);
cudaGraphAddNode(&nodes[2], graph, &nodes[0], NULL, 1, &kParams);
cudaGraphAddNode(&nodes[3], graph, &nodes[1], NULL, 2, &kParams);

cudaGraph_t graph;

cudaStreamBeginCapture(stream);

kernel_A<<< ..., stream >>>(...);
kernel_B<<< ..., stream >>>(...);
libraryCall(stream);
kernel_C<<< ..., stream >>>(...);

cudaStreamEndCapture(stream, &graph);

// stream1 is the origin stream
cudaStreamBeginCapture(stream1);

kernel_A<<< ..., stream1 >>>(...);

// Fork into stream2
cudaEventRecord(event1, stream1);
cudaStreamWaitEvent(stream2, event1);

kernel_B<<< ..., stream1 >>>(...);
kernel_C<<< ..., stream2 >>>(...);

// Join stream2 back to origin stream (stream1)
cudaEventRecord(event2, stream2);
cudaStreamWaitEvent(stream1, event2);

kernel_D<<< ..., stream1 >>>(...);

// End capture in the origin stream
cudaStreamEndCapture(stream1, &graph);

// stream1 and stream2 no longer in capture mode

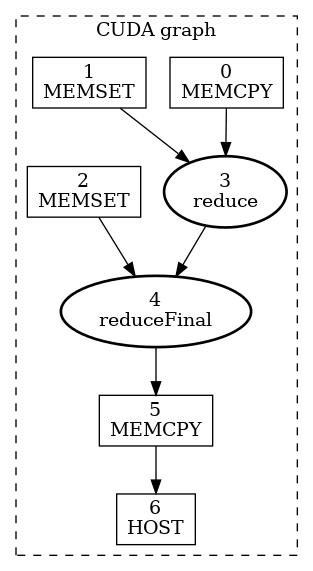

void cudaGraphsManual(float  *inputVec_h,
                      float  *inputVec_d,
                      double *outputVec_d,
                      double *result_d,
                      size_t  inputSize,
                      size_t  numOfBlocks)
{
   cudaStream_t                 streamForGraph;
   cudaGraph_t                  graph;
   std::vector<cudaGraphNode_t> nodeDependencies;
   cudaGraphNode_t              memcpyNode, kernelNode, memsetNode;
   double                       result_h = 0.0;

   cudaStreamCreate(&streamForGraph));

   cudaKernelNodeParams kernelNodeParams = {0};
   cudaMemcpy3DParms    memcpyParams     = {0};
   cudaMemsetParams     memsetParams     = {0};

   memcpyParams.srcArray = NULL;
   memcpyParams.srcPos   = make_cudaPos(0, 0, 0);
   memcpyParams.srcPtr   = make_cudaPitchedPtr(inputVec_h, sizeof(float) * inputSize, inputSize, 1);
   memcpyParams.dstArray = NULL;
   memcpyParams.dstPos   = make_cudaPos(0, 0, 0);
   memcpyParams.dstPtr   = make_cudaPitchedPtr(inputVec_d, sizeof(float) * inputSize, inputSize, 1);
   memcpyParams.extent   = make_cudaExtent(sizeof(float) * inputSize, 1, 1);
   memcpyParams.kind     = cudaMemcpyHostToDevice;

   memsetParams.dst         = (void *)outputVec_d;
   memsetParams.value       = 0;
   memsetParams.pitch       = 0;
   memsetParams.elementSize = sizeof(float); // elementSize can be max 4 bytes
   memsetParams.width       = numOfBlocks * 2;
   memsetParams.height      = 1;

   cudaGraphCreate(&graph, 0);
   cudaGraphAddMemcpyNode(&memcpyNode, graph, NULL, 0, &memcpyParams);
   cudaGraphAddMemsetNode(&memsetNode, graph, NULL, 0, &memsetParams);

   nodeDependencies.push_back(memsetNode);
   nodeDependencies.push_back(memcpyNode);

   void *kernelArgs[4] = {(void *)&inputVec_d, (void *)&outputVec_d, &inputSize, &numOfBlocks};

   kernelNodeParams.func           = (void *)reduce;
   kernelNodeParams.gridDim        = dim3(numOfBlocks, 1, 1);
   kernelNodeParams.blockDim       = dim3(THREADS_PER_BLOCK, 1, 1);
   kernelNodeParams.sharedMemBytes = 0;
   kernelNodeParams.kernelParams   = (void **)kernelArgs;
   kernelNodeParams.extra          = NULL;

   cudaGraphAddKernelNode(
      &kernelNode, graph, nodeDependencies.data(), nodeDependencies.size(), &kernelNodeParams);

   nodeDependencies.clear();
   nodeDependencies.push_back(kernelNode);

   memset(&memsetParams, 0, sizeof(memsetParams));
   memsetParams.dst         = result_d;
   memsetParams.value       = 0;
   memsetParams.elementSize = sizeof(float);
   memsetParams.width       = 2;
   memsetParams.height      = 1;
   cudaGraphAddMemsetNode(&memsetNode, graph, NULL, 0, &memsetParams);

   nodeDependencies.push_back(memsetNode);

   memset(&kernelNodeParams, 0, sizeof(kernelNodeParams));
   kernelNodeParams.func           = (void *)reduceFinal;
   kernelNodeParams.gridDim        = dim3(1, 1, 1);
   kernelNodeParams.blockDim       = dim3(THREADS_PER_BLOCK, 1, 1);
   kernelNodeParams.sharedMemBytes = 0;
   void *kernelArgs2[3]            = {(void *)&outputVec_d, (void *)&result_d, &numOfBlocks};
   kernelNodeParams.kernelParams   = kernelArgs2;
   kernelNodeParams.extra          = NULL;

   cudaGraphAddKernelNode(
      &kernelNode, graph, nodeDependencies.data(), nodeDependencies.size(), &kernelNodeParams);

   nodeDependencies.clear();
   nodeDependencies.push_back(kernelNode);

   memset(&memcpyParams, 0, sizeof(memcpyParams));

   memcpyParams.srcArray = NULL;
   memcpyParams.srcPos   = make_cudaPos(0, 0, 0);
   memcpyParams.srcPtr   = make_cudaPitchedPtr(result_d, sizeof(double), 1, 1);
   memcpyParams.dstArray = NULL;
   memcpyParams.dstPos   = make_cudaPos(0, 0, 0);
   memcpyParams.dstPtr   = make_cudaPitchedPtr(&result_h, sizeof(double), 1, 1);
   memcpyParams.extent   = make_cudaExtent(sizeof(double), 1, 1);
   memcpyParams.kind     = cudaMemcpyDeviceToHost;

   cudaGraphAddMemcpyNode(&memcpyNode, graph, nodeDependencies.data(), nodeDependencies.size(), &memcpyParams);
   nodeDependencies.clear();
   nodeDependencies.push_back(memcpyNode);

   cudaGraphNode_t    hostNode;
   cudaHostNodeParams hostParams = {0};
   hostParams.fn                 = myHostNodeCallback;
   callBackData_t hostFnData;
   hostFnData.data     = &result_h;
   hostFnData.fn_name  = "cudaGraphsManual";
   hostParams.userData = &hostFnData;

   cudaGraphAddHostNode(&hostNode, graph, nodeDependencies.data(), nodeDependencies.size(), &hostParams);
}

void cudaGraphsUsingStreamCapture(float  *inputVec_h,
                      float  *inputVec_d,
                      double *outputVec_d,
                      double *result_d,
                      size_t  inputSize,
                      size_t  numOfBlocks)
{
   cudaStream_t stream1, stream2, stream3, streamForGraph;
   cudaEvent_t  forkStreamEvent, memsetEvent1, memsetEvent2;
   cudaGraph_t  graph;
   double       result_h = 0.0;

   cudaStreamCreate(&stream1);
   cudaStreamCreate(&stream2);
   cudaStreamCreate(&stream3);
   cudaStreamCreate(&streamForGraph);

   cudaEventCreate(&forkStreamEvent);
   cudaEventCreate(&memsetEvent1);
   cudaEventCreate(&memsetEvent2);

   cudaStreamBeginCapture(stream1, cudaStreamCaptureModeGlobal);

   cudaEventRecord(forkStreamEvent, stream1);
   cudaStreamWaitEvent(stream2, forkStreamEvent, 0);
   cudaStreamWaitEvent(stream3, forkStreamEvent, 0);

   cudaMemcpyAsync(inputVec_d, inputVec_h, sizeof(float) * inputSize, cudaMemcpyDefault, stream1);

   cudaMemsetAsync(outputVec_d, 0, sizeof(double) * numOfBlocks, stream2);

   cudaEventRecord(memsetEvent1, stream2);

   cudaMemsetAsync(result_d, 0, sizeof(double), stream3);
   cudaEventRecord(memsetEvent2, stream3);

   cudaStreamWaitEvent(stream1, memsetEvent1, 0);

   reduce<<<numOfBlocks, THREADS_PER_BLOCK, 0, stream1>>>(inputVec_d, outputVec_d, inputSize, numOfBlocks);

   cudaStreamWaitEvent(stream1, memsetEvent2, 0);

   reduceFinal<<<1, THREADS_PER_BLOCK, 0, stream1>>>(outputVec_d, result_d, numOfBlocks);
   cudaMemcpyAsync(&result_h, result_d, sizeof(double), cudaMemcpyDefault, stream1);

   callBackData_t hostFnData = {0};
   hostFnData.data           = &result_h;
   hostFnData.fn_name        = "cudaGraphsUsingStreamCapture";
   cudaHostFn_t fn           = myHostNodeCallback;
   cudaLaunchHostFunc(stream1, fn, &hostFnData);
   cudaStreamEndCapture(stream1, &graph);
}

cudaGraphExec_t graphExec;
cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);

cudaGraphLaunch(graphExec, stream);

cudaGraph_t graph;

cudaStreamBeginCapture(stream);

kernel_A<<< ..., stream >>>(...);
kernel_B<<< ..., stream >>>(...);
libraryCall(stream);
kernel_C<<< ..., stream >>>(...);

cudaStreamEndCapture(stream, &graph);

cudaGraphExec_t graphExec;
cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);
cudaGraphLaunch(graphExec, stream);

cudaGraphExec_t graphExec = NULL;

for (int i = 0; i < 10; i++) {
    cudaGraph_t graph;
    cudaGraphExecUpdateResult updateResult;
    cudaGraphNode_t errorNode;

    // 在此示例中，我们使用流捕获来创建图。
    // 您也可以使用 Graph API 来生成图。
    cudaStreamBeginCapture(stream, cudaStreamCaptureModeGlobal);

    // 调用用户定义的、基于流的工作负载，例如
    do_cuda_work(stream);

    cudaStreamEndCapture(stream, &graph);

    // 如果已经实例化了图，尝试直接更新它
    // 以避免实例化开销
    if (graphExec != NULL) {
        // 如果图更新失败，errorNode 将被设置为
        // 导致失败的节点，updateResult 将被设置为
        // 原因代码。
        cudaGraphExecUpdate(graphExec, graph, &errorNode, &updateResult);
    }

    // 在第一次迭代或更新因任何原因失败时进行实例化
    if (graphExec == NULL || updateResult != cudaGraphExecUpdateSuccess) {

        // 如果之前的更新失败，在重新实例化之前销毁 cudaGraphExec_t
        if (graphExec != NULL) {
            cudaGraphExecDestroy(graphExec);
        }
        // 从 graph 实例化 graphExec。此处未使用错误节点和
        // 错误消息参数。
        cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);
    }

    cudaGraphDestroy(graph);
    cudaGraphLaunch(graphExec, stream);
    cudaStreamSynchronize(stream);
}

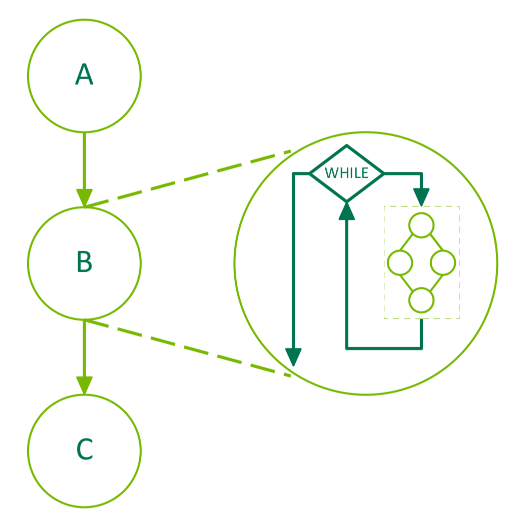

__global__ void setHandle(cudaGraphConditionalHandle handle, int value)
{
    ...
    // Set the condition value to the value passed to the kernel
    cudaGraphSetConditional(handle, value);
    ...
}

void graphSetup() {
    cudaGraph_t graph;
    cudaGraphExec_t graphExec;
    cudaGraphNode_t node;
    void *kernelArgs[2];
    int value = 1;

    // Create the graph
    cudaGraphCreate(&graph, 0);

    // Create the conditional handle; because no default value is provided, the condition value is undefined at the start of each graph execution
    cudaGraphConditionalHandle handle;
    cudaGraphConditionalHandleCreate(&handle, graph);

    // Use a kernel upstream of the conditional to set the handle value
    cudaGraphNodeParams params = { cudaGraphNodeTypeKernel };
    params.kernel.func = (void *)setHandle;
    params.kernel.gridDim.x = params.kernel.gridDim.y = params.kernel.gridDim.z = 1;
    params.kernel.blockDim.x = params.kernel.blockDim.y = params.kernel.blockDim.z = 1;
    params.kernel.kernelParams = kernelArgs;
    kernelArgs[0] = &handle;
    kernelArgs[1] = &value;
    cudaGraphAddNode(&node, graph, NULL, 0, &params);

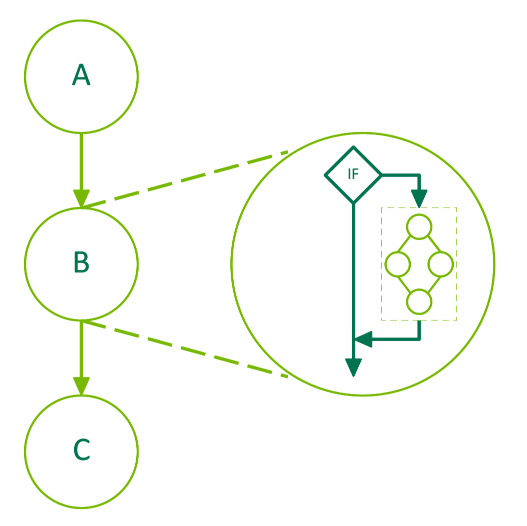

    // Create and add the conditional node
    cudaGraphNodeParams cParams = { cudaGraphNodeTypeConditional };
    cParams.conditional.handle = handle;
    cParams.conditional.type   = cudaGraphCondTypeIf;
    cParams.conditional.size   = 1; // There is only an "if" body graph
    cudaGraphAddNode(&node, graph, &node, 1, &cParams);

    // Get the body graph of the conditional node
    cudaGraph_t bodyGraph = cParams.conditional.phGraph_out[0];

    // Populate the body graph of the IF conditional node
    ...
    cudaGraphAddNode(&node, bodyGraph, NULL, 0, &params);

    // Instantiate and launch the graph
    cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);
    cudaGraphLaunch(graphExec, 0);
    cudaDeviceSynchronize();

    // Clean up
    cudaGraphExecDestroy(graphExec);
    cudaGraphDestroy(graph);
}

void graphSetup() {
    cudaGraph_t graph;
    cudaGraphExec_t graphExec;
    cudaGraphNode_t node;
    void *kernelArgs[2];
    int value = 1;

    // 创建图
    cudaGraphCreate(&graph, 0);

    // 创建条件句柄；由于未提供默认值，条件值在每次图执行开始时是未定义的
    cudaGraphConditionalHandle handle;
    cudaGraphConditionalHandleCreate(&handle, graph);

    // 在条件节点上游使用一个内核来设置句柄值
    cudaGraphNodeParams params = { cudaGraphNodeTypeKernel };
    params.kernel.func = (void *)setHandle;
    params.kernel.gridDim.x = params.kernel.gridDim.y = params.kernel.gridDim.z = 1;
    params.kernel.blockDim.x = params.kernel.blockDim.y = params.kernel.blockDim.z = 1;
    params.kernel.kernelParams = kernelArgs;
    kernelArgs[0] = &handle;
    kernelArgs[1] = &value;
    cudaGraphAddNode(&node, graph, NULL, 0, &params);

    // 创建并添加 IF 条件节点
    cudaGraphNodeParams cParams = { cudaGraphNodeTypeConditional };
    cParams.conditional.handle = handle;
    cParams.conditional.type   = cudaGraphCondTypeIf;
    cParams.conditional.size   = 2; // 同时包含 "if" 和 "else" 主体图
    cudaGraphAddNode(&node, graph, &node, 1, &cParams);

    // 获取条件节点的主体图
    cudaGraph_t ifBodyGraph = cParams.conditional.phGraph_out[0];
    cudaGraph_t elseBodyGraph = cParams.conditional.phGraph_out[1];

    // 填充 IF 条件节点的主体图
    ...
    cudaGraphAddNode(&node, ifBodyGraph, NULL, 0, &params);
    ...
    cudaGraphAddNode(&node, elseBodyGraph, NULL, 0, &params);

    // 实例化并启动图
    cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);
    cudaGraphLaunch(graphExec, 0);
    cudaDeviceSynchronize();

    // 清理
    cudaGraphExecDestroy(graphExec);
    cudaGraphDestroy(graph);
}

__global__ void loopKernel(cudaGraphConditionalHandle handle, char *dPtr)
{
   // 递减 dPtr 的值，一旦 dPtr 为 0，就将条件值设置为 0
   if (--(*dPtr) == 0) {
      cudaGraphSetConditional(handle, 0);
   }
}

void graphSetup() {
    cudaGraph_t graph;
    cudaGraphExec_t graphExec;
    cudaGraphNode_t node;
    void *kernelArgs[2];

    // 分配一个字节的设备内存作为输入
    char *dPtr;
    cudaMalloc((void **)&dPtr, 1);

    // 创建图
    cudaGraphCreate(&graph, 0);

    // 创建条件句柄，默认值为 1
    cudaGraphConditionalHandle handle;
    cudaGraphConditionalHandleCreate(&handle, graph, 1, cudaGraphCondAssignDefault);

    // 创建并添加 WHILE 条件节点
    cudaGraphNodeParams cParams = { cudaGraphNodeTypeConditional };
    cParams.conditional.handle = handle;
    cParams.conditional.type   = cudaGraphCondTypeWhile;
    cParams.conditional.size   = 1;
    cudaGraphAddNode(&node, graph, NULL, 0, &cParams);

    // 获取条件节点的主体图
    cudaGraph_t bodyGraph = cParams.conditional.phGraph_out[0];

    // 填充条件节点的主体图
    cudaGraphNodeParams params = { cudaGraphNodeTypeKernel };
    params.kernel.func = (void *)loopKernel;
    params.kernel.gridDim.x = params.kernel.gridDim.y = params.kernel.gridDim.z = 1;
    params.kernel.blockDim.x = params.kernel.blockDim.y = params.kernel.blockDim.z = 1;
    params.kernel.kernelParams = kernelArgs;
    kernelArgs[0] = &handle;
    kernelArgs[1] = &dPtr;
    cudaGraphAddNode(&node, bodyGraph, NULL, 0, &params);

    // 初始化设备内存，实例化并启动图
    cudaMemset(dPtr, 10, 1); // 将 dPtr 设置为 10；循环将运行直到 dPtr 为 0
    cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);
    cudaGraphLaunch(graphExec, 0);
    cudaDeviceSynchronize();

    // 清理
    cudaGraphExecDestroy(graphExec);
    cudaGraphDestroy(graph);
    cudaFree(dPtr);
}

__global__ void setHandle(cudaGraphConditionalHandle handle, int value)
{
    ...
    // 将条件值设置为传递给内核的值
    cudaGraphSetConditional(handle, value);
    ...
}

void graphSetup() {
    cudaGraph_t graph;
    cudaGraphExec_t graphExec;
    cudaGraphNode_t node;
    void *kernelArgs[2];
    int value = 1;

    // 创建图
    cudaGraphCreate(&graph, 0);

    // 创建条件句柄；由于未提供默认值，条件值在每次图执行开始时是未定义的
    cudaGraphConditionalHandle handle;
    cudaGraphConditionalHandleCreate(&handle, graph);

    // 使用条件节点上游的一个内核来设置句柄值
    cudaGraphNodeParams params = { cudaGraphNodeTypeKernel };
    params.kernel.func = (void *)setHandle;
    params.kernel.gridDim.x = params.kernel.gridDim.y = params.kernel.gridDim.z = 1;
    params.kernel.blockDim.x = params.kernel.blockDim.y = params.kernel.blockDim.z = 1;
    params.kernel.kernelParams = kernelArgs;
    kernelArgs[0] = &handle;
    kernelArgs[1] = &value;
    cudaGraphAddNode(&node, graph, NULL, 0, &params);

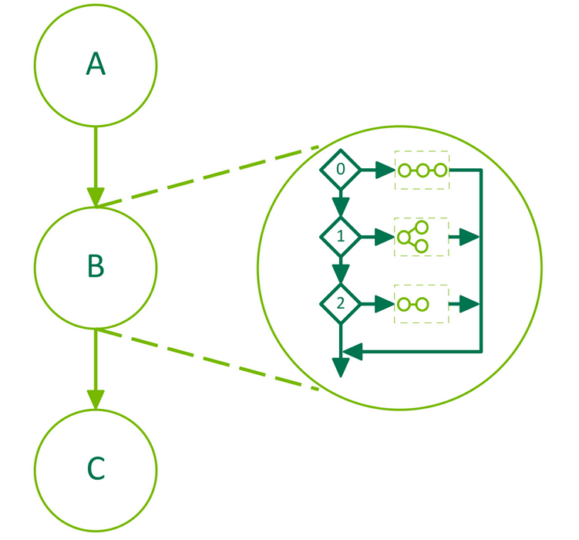

    // 创建并添加条件 SWITCH 节点
    cudaGraphNodeParams cParams = { cudaGraphNodeTypeConditional };
    cParams.conditional.handle = handle;
    cParams.conditional.type   = cudaGraphCondTypeSwitch;
    cParams.conditional.size   = 5;
    cudaGraphAddNode(&node, graph, &node, 1, &cParams);

    // 获取条件节点的体图
    cudaGraph_t *bodyGraphs = cParams.conditional.phGraph_out;

    // 填充 SWITCH 条件节点的体图
    ...
    cudaGraphAddNode(&node, bodyGraphs[0], NULL, 0, &params);
    ...
    cudaGraphAddNode(&node, bodyGraphs[4], NULL, 0, &params);

    // 实例化并启动图
    cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);
    cudaGraphLaunch(graphExec, 0);
    cudaDeviceSynchronize();

    // 清理
    cudaGraphExecDestroy(graphExec);
    cudaGraphDestroy(graph);
}

// 创建图 - 初始为空
cudaGraphCreate(&graph, 0);

// 基本分配的参数
cudaGraphNodeParams params = { cudaGraphNodeTypeMemAlloc };
params.alloc.poolProps.allocType = cudaMemAllocationTypePinned;
params.alloc.poolProps.location.type = cudaMemLocationTypeDevice;
// 指定设备 0 为常驻设备
params.alloc.poolProps.location.id = 0;
params.alloc.bytesize = size;

cudaGraphAddNode(&allocNode, graph, NULL, NULL, 0, &params);

// 创建一个使用图分配的内核节点
cudaGraphNodeParams nodeParams = { cudaGraphNodeTypeKernel };
nodeParams.kernel.kernelParams[0] = params.alloc.dptr;
// ...设置其他内核节点参数...

// 将内核节点添加到图中

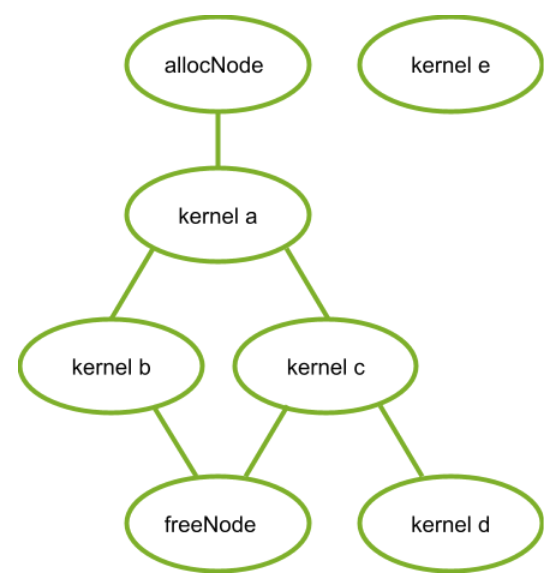

cudaGraphAddNode(&a, graph, &allocNode, 1, NULL, &nodeParams);
cudaGraphAddNode(&b, graph, &a, 1, NULL, &nodeParams);
cudaGraphAddNode(&c, graph, &a, 1, NULL, &nodeParams);
cudaGraphNode_t dependencies[2];
// 内核节点 b 和 c 正在使用图分配，因此释放节点必须依赖于它们。由于节点 b 对节点 a 的依赖建立了间接依赖，释放节点不需要显式依赖于节点 a。
dependencies[0] = b;
dependencies[1] = c;
cudaGraphNodeParams freeNodeParams = { cudaGraphNodeTypeMemFree };
freeNodeParams.free.dptr = params.alloc.dptr;
cudaGraphAddNode(&freeNode, graph, dependencies, NULL, 2, freeNodeParams);
// 释放节点不依赖于内核节点 d，因此 d 不得访问已释放的图分配。
cudaGraphAddNode(&d, graph, &c, NULL, 1, &nodeParams);

// 节点 e 不依赖于分配节点，因此它不得访问该分配。即使释放节点依赖于内核节点 e，情况也是如此。
cudaGraphAddNode(&e, graph, NULL, NULL, 0, &nodeParams);

cudaMallocAsync(&dptr, size, stream1);
kernel_A<<< ..., stream1 >>>(dptr, ...);

// Fork into stream2
cudaEventRecord(event1, stream1);
cudaStreamWaitEvent(stream2, event1);

kernel_B<<< ..., stream1 >>>(dptr, ...);
// event dependencies translated into graph dependencies, so the kernel node created by the capture of kernel C will depend on the allocation node created by capturing the cudaMallocAsync call.
kernel_C<<< ..., stream2 >>>(dptr, ...);

// Join stream2 back to origin stream (stream1)
cudaEventRecord(event2, stream2);
cudaStreamWaitEvent(stream1, event2);

// Free depends on all work accessing the memory.
cudaFreeAsync(dptr, stream1);

// End capture in the origin stream
cudaStreamEndCapture(stream1, &graph);

// Contents of allocating graph
void *dptr;
cudaGraphNodeParams params = { cudaGraphNodeTypeMemAlloc };
params.alloc.poolProps.allocType = cudaMemAllocationTypePinned;
params.alloc.poolProps.location.type = cudaMemLocationTypeDevice;
params.alloc.bytesize = size;
cudaGraphAddNode(&allocNode, allocGraph, NULL, NULL, 0, &params);
dptr = params.alloc.dptr;

cudaGraphInstantiate(&allocGraphExec, allocGraph, NULL, NULL, 0);

cudaGraphLaunch(allocGraphExec, stream);
kernel<<< ..., stream >>>(dptr, ...);
cudaFreeAsync(dptr, stream);

// 分配图的内容
void *dptr;

// 分配图的内容
cudaGraphAddNode(&allocNode, allocGraph, NULL, NULL, 0, &allocNodeParams);
dptr = allocNodeParams.alloc.dptr;

// 消费/释放图的内容
kernelNodeParams.kernel.kernelParams[0] = allocNodeParams.alloc.dptr;
cudaGraphAddNode(&freeNode, freeGraph, NULL, NULL, 1, dptr);

cudaGraphInstantiate(&allocGraphExec, allocGraph, NULL, NULL, 0);
cudaGraphInstantiate(&freeGraphExec, freeGraph, NULL, NULL, 0);

cudaGraphLaunch(allocGraphExec, allocStream);

// 建立 stream2 对分配节点的依赖
// 注意：此依赖也可以通过流同步操作建立
cudaEventRecord(allocEvent, allocStream);
cudaStreamWaitEvent(stream2, allocEvent);

kernel<<< ..., stream2 >>> (dptr, ...);

// 建立 stream3 与分配使用之间的依赖
cudaStreamRecordEvent(streamUseDoneEvent, stream2);
cudaStreamWaitEvent(stream3, streamUseDoneEvent);

// 现在可以安全地启动释放图，它也可以访问该内存
cudaGraphLaunch(freeGraphExec, stream3);

// 分配图的内容
void *dptr;
cudaEvent_t allocEvent; // 指示分配何时可供使用的事件
cudaEvent_t streamUseDoneEvent; // 指示流操作何时完成对分配的使用的事件

// 包含事件记录节点的分配图内容
cudaGraphAddNode(&allocNode, allocGraph, NULL, NULL, 0, &allocNodeParams);
dptr = allocNodeParams.alloc.dptr;
// 注意：此事件记录节点依赖于分配节点

cudaGraphNodeParams allocEventNodeParams = { cudaGraphNodeTypeEventRecord };
allocEventParams.eventRecord.event = allocEvent;
cudaGraphAddNode(&recordNode, allocGraph, &allocNode, NULL, 1, allocEventNodeParams);
cudaGraphInstantiate(&allocGraphExec, allocGraph, NULL, NULL, 0);

// 包含事件等待节点的消费/释放图内容
cudaGraphNodeParams streamWaitEventNodeParams = { cudaGraphNodeTypeEventWait };
streamWaitEventNodeParams.eventWait.event = streamUseDoneEvent;
cudaGraphAddNode(&streamUseDoneEventNode, waitAndFreeGraph, NULL, NULL, 0, streamWaitEventNodeParams);

cudaGraphNodeParams allocWaitEventNodeParams = { cudaGraphNodeTypeEventWait };
allocWaitEventNodeParams.eventWait.event = allocEvent;
cudaGraphAddNode(&allocReadyEventNode, waitAndFreeGraph, NULL, NULL, 0, allocWaitEventNodeParams);

kernelNodeParams->kernelParams[0] = allocNodeParams.alloc.dptr;

// allocReadyEventNode 提供了与分配节点的顺序，以便在消费图中使用。
cudaGraphAddNode(&kernelNode, waitAndFreeGraph, &allocReadyEventNode, NULL, 1, &kernelNodeParams);

// 释放节点必须同时排序在外部和内部用户之后。
// 因此，该节点必须同时依赖于 kernelNode 和 streamUseDoneEventNode。
dependencies[0] = kernelNode;
dependencies[1] = streamUseDoneEventNode;

cudaGraphNodeParams freeNodeParams = { cudaGraphNodeTypeMemFree };
freeNodeParams.free.dptr = dptr;
cudaGraphAddNode(&freeNode, waitAndFreeGraph, &dependencies, NULL, 2, freeNodeParams);
cudaGraphInstantiate(&waitAndFreeGraphExec, waitAndFreeGraph, NULL, NULL, 0);

cudaGraphLaunch(allocGraphExec, allocStream);

// 建立 stream2 对事件节点的依赖，满足顺序要求
cudaStreamWaitEvent(stream2, allocEvent);
kernel<<< ..., stream2 >>> (dptr, ...);
cudaStreamRecordEvent(streamUseDoneEvent, stream2);

// waitAndFreeGraphExec 中的事件等待节点建立了对 "readyForFreeEvent" 的依赖，该依赖是防止在流二中运行的内核在释放节点之后（按执行顺序）访问分配所必需的。
cudaGraphLaunch(waitAndFreeGraphExec, stream3);

// Create producer graph which allocates memory and populates it with data
cudaStreamBeginCapture(cudaStreamPerThread, cudaStreamCaptureModeGlobal);
cudaMallocAsync(&data1, blocks * threads, cudaStreamPerThread);
cudaMallocAsync(&data2, blocks * threads, cudaStreamPerThread);
produce<<<blocks, threads, 0, cudaStreamPerThread>>>(data1, data2);
...
cudaStreamEndCapture(cudaStreamPerThread, &graph);
cudaGraphInstantiateWithFlags(&producer,
                              graph,
                              cudaGraphInstantiateFlagAutoFreeOnLaunch);
cudaGraphDestroy(graph);

// Create first consumer graph by capturing an asynchronous library call
cudaStreamBeginCapture(cudaStreamPerThread, cudaStreamCaptureModeGlobal);
consumerFromLibrary(data1, cudaStreamPerThread);
cudaStreamEndCapture(cudaStreamPerThread, &graph);
cudaGraphInstantiateWithFlags(&consumer1, graph, 0); //regular instantiation
cudaGraphDestroy(graph);

// Create second consumer graph
cudaStreamBeginCapture(cudaStreamPerThread, cudaStreamCaptureModeGlobal);
consume2<<<blocks, threads, 0, cudaStreamPerThread>>>(data2);
...
cudaStreamEndCapture(cudaStreamPerThread, &graph);
cudaGraphInstantiateWithFlags(&consumer2, graph, 0);
cudaGraphDestroy(graph);

// Launch in a loop
bool launchConsumer2 = false;
do {
    cudaGraphLaunch(producer, myStream);
    cudaGraphLaunch(consumer1, myStream);
    if (launchConsumer2) {
        cudaGraphLaunch(consumer2, myStream);
    }
} while (determineAction(&launchConsumer2));

cudaFreeAsync(data1, myStream);
cudaFreeAsync(data2, myStream);

cudaGraphExecDestroy(producer);
cudaGraphExecDestroy(consumer1);
cudaGraphExecDestroy(consumer2);

// 创建子图
cudaGraphCreate(&child, 0);

// 基本分配的参数
cudaGraphNodeParams allocNodeParams = { cudaGraphNodeTypeMemAlloc };
allocNodeParams.alloc.poolProps.allocType = cudaMemAllocationTypePinned;
allocNodeParams.alloc.poolProps.location.type = cudaMemLocationTypeDevice;
// 指定设备 0 为驻留设备
allocNodeParams.alloc.poolProps.location.id = 0;
allocNodeParams.alloc.bytesize = size;

cudaGraphAddNode(&allocNode, graph, NULL, NULL, 0, &allocNodeParams);
// 可以在此处添加使用该分配的其他节点
cudaGraphNodeParams freeNodeParams = { cudaGraphNodeTypeMemFree };
freeNodeParams.free.dptr = allocNodeParams.alloc.dptr;
cudaGraphAddNode(&freeNode, graph, &allocNode, NULL, 1, freeNodeParams);

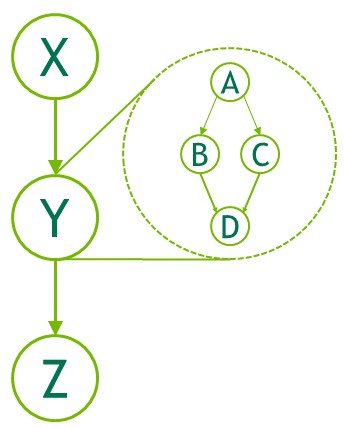

// 创建父图
cudaGraphCreate(&parent, 0);

// 将子图移动到父图
cudaGraphNodeParams childNodeParams = { cudaGraphNodeTypeGraph };
childNodeParams.graph.graph = child;
childNodeParams.graph.ownership = cudaGraphChildGraphOwnershipMove;
cudaGraphAddNode(&parentNode, parent, NULL, NULL, 0, &childNodeParams);

cudaGraphNodeParams allocNodeParams = { cudaGraphNodeTypeMemAlloc };
allocNodeParams.alloc.poolProps.allocType = cudaMemAllocationTypePinned;
allocNodeParams.alloc.poolProps.location.type = cudaMemLocationTypeDevice;
// specify device 1 as the resident device
allocNodeParams.alloc.poolProps.location.id = 1;
allocNodeParams.alloc.bytesize = size;

// allocate an allocation resident on device 1 accessible from device 1
cudaGraphAddNode(&allocNode, graph, NULL, NULL, 0, &allocNodeParams);

accessDescs[2];
// boilerplate for the access descs (only ReadWrite and Device access supported by the add node api)
accessDescs[0].flags = cudaMemAccessFlagsProtReadWrite;
accessDescs[0].location.type = cudaMemLocationTypeDevice;
accessDescs[1].flags = cudaMemAccessFlagsProtReadWrite;
accessDescs[1].location.type = cudaMemLocationTypeDevice;

// access being requested for device 0 & 2.  Device 1 access requirement left implicit.
accessDescs[0].location.id = 0;
accessDescs[1].location.id = 2;

// access request array has 2 entries.
allocNodeParams.accessDescCount = 2;
allocNodeParams.accessDescs = accessDescs;

// allocate an allocation resident on device 1 accessible from devices 0, 1 and 2. (0 & 2 from the descriptors, 1 from it being the resident device).
cudaGraphAddNode(&allocNode, graph, NULL, NULL, 0, &allocNodeParams);

// boilerplate for the access descs (only ReadWrite and Device access supported by the add node api)
accessDesc.flags = cudaMemAccessFlagsProtReadWrite;
accessDesc.location.type = cudaMemLocationTypeDevice;
accessDesc.location.id = 1;

// let memPool be resident and accessible on device 0

cudaStreamBeginCapture(stream);
cudaMallocAsync(&dptr1, size, memPool, stream);
cudaStreamEndCapture(stream, &graph1);

cudaMemPoolSetAccess(memPool, &accessDesc, 1);

cudaStreamBeginCapture(stream);
cudaMallocAsync(&dptr2, size, memPool, stream);
cudaStreamEndCapture(stream, &graph2);

//The graph node allocating dptr1 would only have the device 0 accessibility even though memPool now has device 1 accessibility.
//The graph node allocating dptr2 will have device 0 and device 1 accessibility, since that was the pool accessibility at the time of the cudaMallocAsync call.

// 实例化后显式上传
cudaGraphInstantiate(&deviceGraphExec1, deviceGraph1, cudaGraphInstantiateFlagDeviceLaunch);
cudaGraphUpload(deviceGraphExec1, stream);

// 作为实例化一部分的显式上传
cudaGraphInstantiateParams instantiateParams = {0};
instantiateParams.flags = cudaGraphInstantiateFlagDeviceLaunch | cudaGraphInstantiateFlagUpload;
instantiateParams.uploadStream = stream;
cudaGraphInstantiateWithParams(&deviceGraphExec2, deviceGraph2, &instantiateParams);

// 通过主机启动隐式上传
cudaGraphInstantiate(&deviceGraphExec3, deviceGraph3, cudaGraphInstantiateFlagDeviceLaunch);
cudaGraphLaunch(deviceGraphExec3, stream);

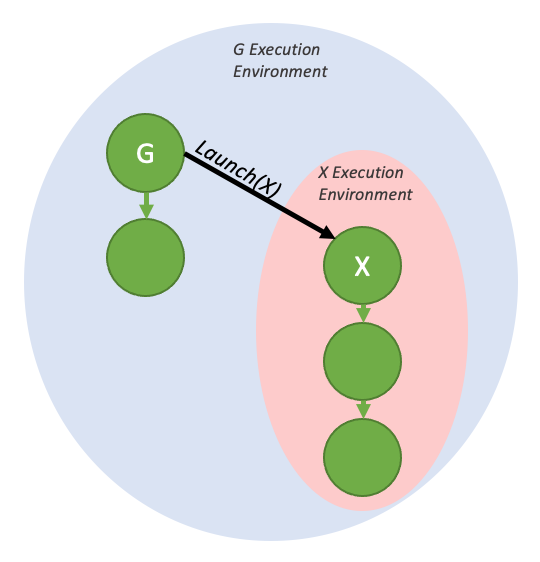

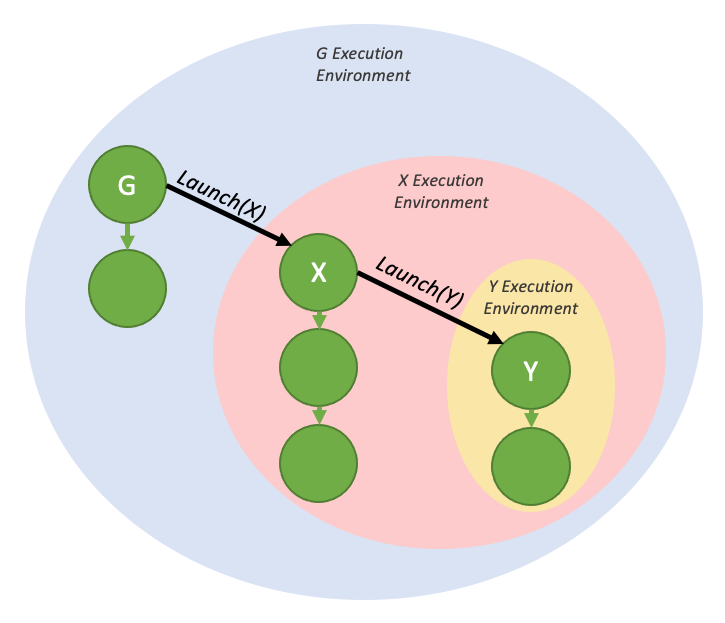

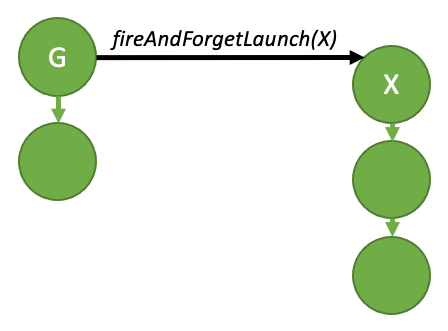

__global__ void launchFireAndForgetGraph(cudaGraphExec_t graph) {
    cudaGraphLaunch(graph, cudaStreamGraphFireAndForget);
}

void graphSetup() {
    cudaGraphExec_t gExec1, gExec2;
    cudaGraph_t g1, g2;

    // 创建、实例化并上传设备图。
    create_graph(&g2);
    cudaGraphInstantiate(&gExec2, g2, cudaGraphInstantiateFlagDeviceLaunch);
    cudaGraphUpload(gExec2, stream);

    // 创建并实例化启动图。
    cudaStreamBeginCapture(stream, cudaStreamCaptureModeGlobal);
    launchFireAndForgetGraph<<<1, 1, 0, stream>>>(gExec2);
    cudaStreamEndCapture(stream, &g1);
    cudaGraphInstantiate(&gExec1, g1);

    // 启动主机图，主机图将进而启动设备图。
    cudaGraphLaunch(gExec1, stream);
}

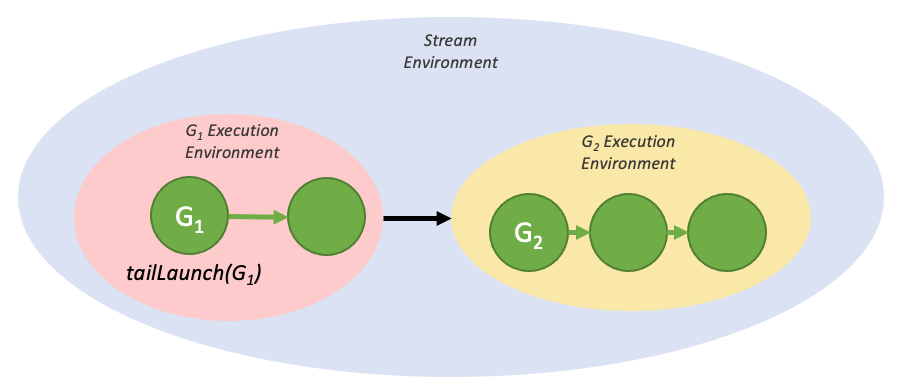

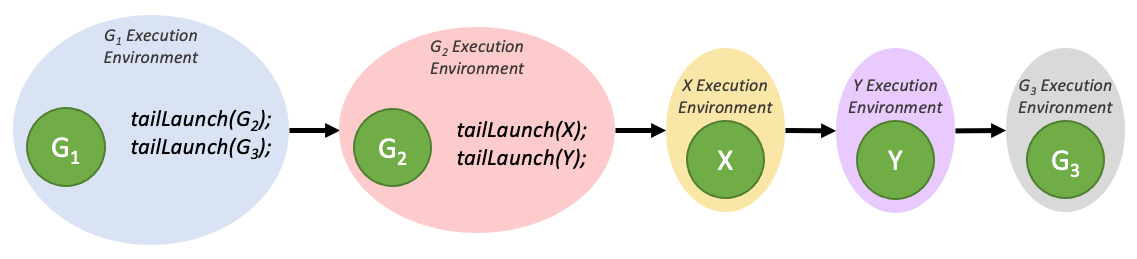

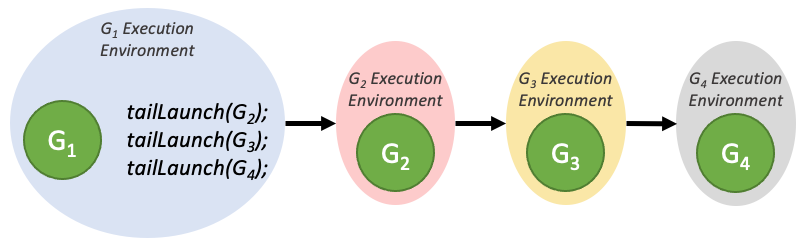

__global__ void launchTailGraph(cudaGraphExec_t graph) {
    cudaGraphLaunch(graph, cudaStreamGraphTailLaunch);
}

void graphSetup() {
    cudaGraphExec_t gExec1, gExec2;
    cudaGraph_t g1, g2;

    // 创建、实例化并上传设备图。
    create_graph(&g2);
    cudaGraphInstantiate(&gExec2, g2, cudaGraphInstantiateFlagDeviceLaunch);
    cudaGraphUpload(gExec2, stream);

    // 创建并实例化启动图。
    cudaStreamBeginCapture(stream, cudaStreamCaptureModeGlobal);
    launchTailGraph<<<1, 1, 0, stream>>>(gExec2);
    cudaStreamEndCapture(stream, &g1);
    cudaGraphInstantiate(&gExec1, g1);

    // 启动主机图，该图将进而启动设备图。
    cudaGraphLaunch(gExec1, stream);
}
